ESD pad mat |
|
| Product name : ESD pad mat |
| Item : EC1001 |
| Details : |

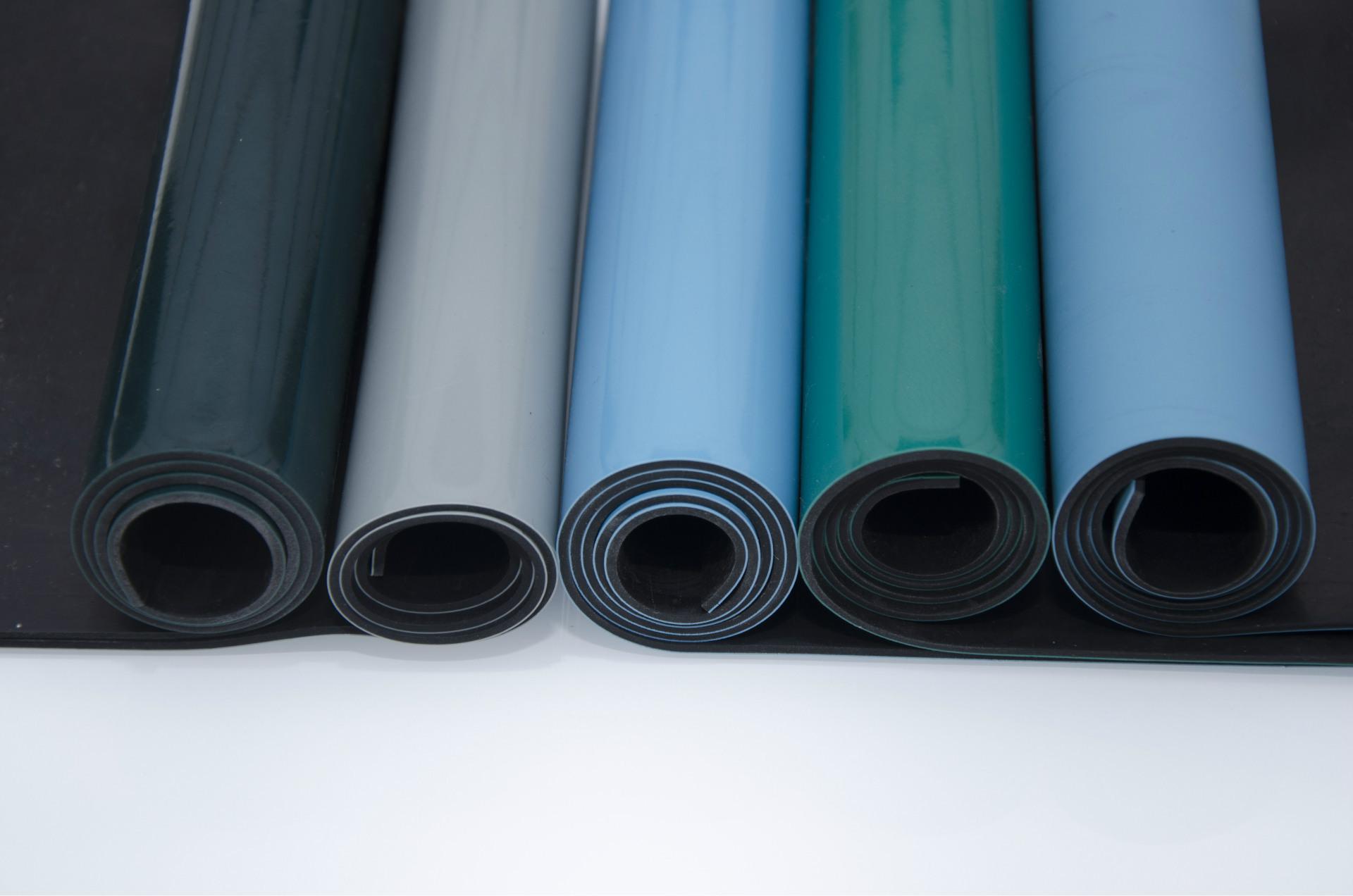

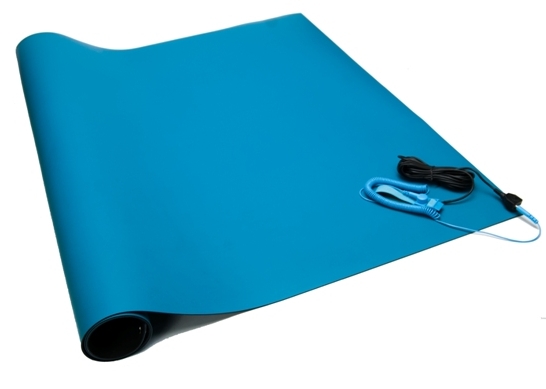

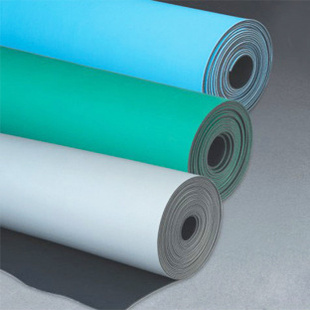

ESD pad mat,ESD table mat,ESD rubber mat
It is made of anti-static (conductive) and static-dissipative materials as well as synthetic rubber.For 2mm thickness,The top layer is a 0.5mm thick static-dissipative layer. The bottom layer is a 1.5mm conductive layer.
Specifications:
Surface: glossy(shining) and dull
|
Resistivity of Surface Layer
|
106-109Ω
|
|
Resistivity of Bottom Layer
|
103-105Ω
|
|
Bulk Resistivity
|
105-108Ω
|
|
Abrasiveness Loss
|
＜0.02g/cm2
|
|
Time for Static Dissipation
|
＜0.01s
|
|
Size
|
10m x 1.0m, 10m x 1.2m, 10m x 0.8m
|
|
Color
|
Green/Black, Blue/Black, Grey/Black
|
|
Thickness
|
2.0mm, 3.0mm
|
|
 |
